Selecting appropriate gasket sheets for industrial applications requires careful consideration of multiple factors. The right sealing solution prevents leakage, maintains system integrity, and ensures operational efficiency in demanding environments. Process parameters including temperature, pressure, media type, and flange condition all play crucial roles in determining the optimal gasket solution.
Key Factors in Gasket Selection
Temperature Considerations
Temperature extremes can significantly impact gasket performance. High-temperature applications often benefit from metallic options like corrugated gasket designs, which maintain their structural integrity even when exposed to temperatures exceeding 800°C. The unique wave-like profile of corrugated gasket types provides excellent resilience against thermal cycling while maintaining an effective seal.
For cryogenic applications or moderate temperatures, non-metallic gasket sheets offer exceptional chemical resistance and maintain flexibility even at lower temperature ranges. Their non-stick properties prevent them from adhering to flange surfaces, making maintenance operations more straightforward.
Pressure Requirements
System pressure directly influences gasket selection. High-pressure systems typically require robust solutions such as kammprofile gaskets, which combine a serrated metal core with soft facing materials. This design enables kammprofile gaskets to withstand substantial pressure fluctuations while maintaining seal integrity.

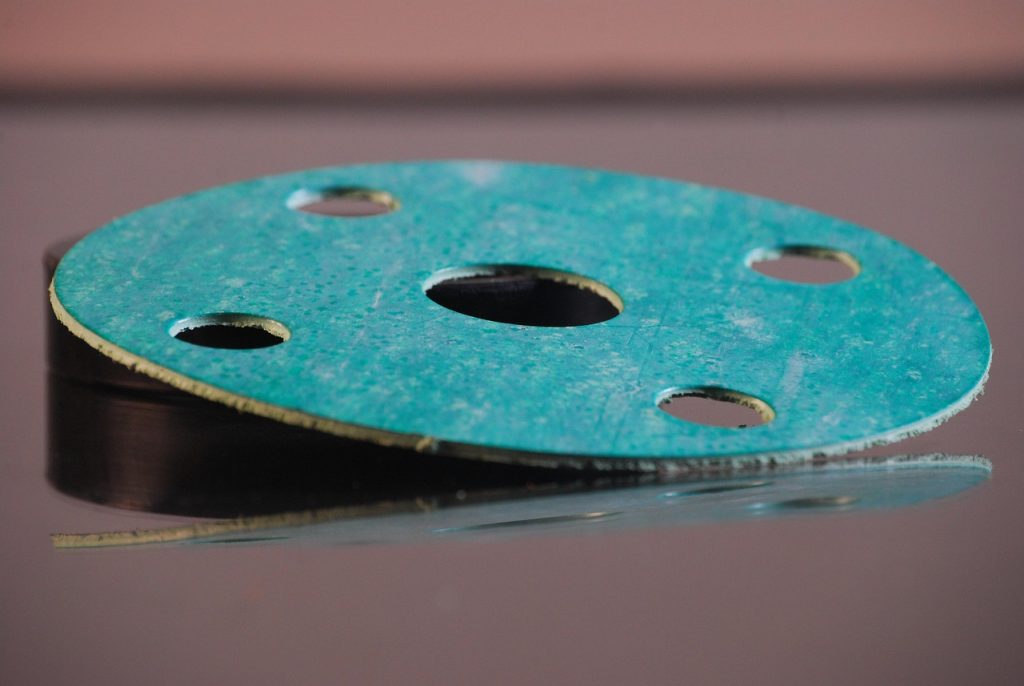

For lower-pressure applications, compressed fiber gasket sheets may provide sufficient sealing capability without the added cost of more specialized options. The material density and thickness should align with expected operating pressures to prevent extrusion or collapse.
Chemical Compatibility
Process media composition represents one of the most critical selection factors. Corrosive chemicals can rapidly degrade incompatible gasket materials, leading to premature failure and potential safety hazards.
Many specialized gasket sheets excel in chemical compatibility, resisting attack from nearly all industrial chemicals except specific compounds. Their inert nature makes certain materials ideal for pharmaceutical, food processing, and chemical manufacturing applications where product purity is paramount.
Common Gasket Types and Applications
Non-Metallic Gasket Sheets and Their Applications
Non-metallic gasket sheets provide exceptional chemical resistance across a broad pH range, making them suitable for aggressive chemical environments. Their non-contaminating properties ensure process purity in sensitive applications. While some gasket sheets offer excellent chemical compatibility, they may exhibit cold flow characteristics under sustained compression, which could necessitate periodic retorquing.
These sealing solutions perform effectively across various temperature ranges, though mechanical properties may diminish at higher temperatures. High-quality gasket sheets come in various forms, including fiber-reinforced, rubber-based, and graphite-based materials, each offering specific performance characteristics.
Corrugated Gasket Options for High-Temperature Service
A corrugated gasket consists of a corrugated metal core, typically stainless steel, with facing materials selected for specific applications. The corrugated design creates multiple sealing points that maintain contact even during thermal cycling or flange movement.
These specialized gaskets excel in high-temperature applications where thermal expansion could compromise conventional options. The metal core of a corrugated gasket provides mechanical stability while the facing material ensures tight sealing against flange irregularities. Common facing materials include flexible graphite for high-temperature service or non-asbestos compositions for chemical resistance.
Kammprofile Gaskets for Critical Services
Kammprofile gaskets represent an advanced sealing solution for critical applications where reliability is paramount. Their design incorporates a serrated metal core with soft facing materials on both sides. The serrations create numerous sealing points while the soft facing conforms to flange imperfections.
The metal core of kammprofile gaskets provides excellent blow-out resistance, making them suitable for high-pressure applications in refineries, power plants, and chemical processing facilities. Their design allows for lower seating stresses compared to solid metal gaskets, reducing the required bolt load and minimizing flange stress.
Material Selection Guidelines
Metallic Gasket Considerations
Metallic components in gaskets like corrugated gasket designs and kammprofile gaskets require careful material selection based on process conditions. Common metal options include:
- 316/316L stainless steel for general corrosion resistance
- Alloy 800H for high-temperature oxidation resistance
- Titanium for exceptional chemical resistance in chloride environments
- Nickel alloys for both high-temperature and corrosive applications
The selected metal should resist corrosion from both process media and external environmental factors to ensure long-term performance.
Non-Metallic Facing Materials
Soft facing materials used with corrugated gasket types and kammprofile gaskets significantly influence overall sealing performance. Common options include:
- Flexible graphite for high-temperature applications up to 450°C in oxidizing environments
- PTFE facings for superior chemical resistance
- Ceramic fiber for extreme temperature applications
- Compressed non-asbestos gasket sheets for general service conditions
The facing material thickness requires balancing between conformability (thicker facings conform better) and blow-out resistance (thinner facings offer better blow-out protection).
Installation Best Practices
Proper installation significantly impacts gasket performance regardless of type. Even premium options like kammprofile gaskets or specialized gasket sheets can fail prematurely when installed incorrectly. Key installation considerations include:
- Proper flange cleaning to remove previous gasket residue
- Verification of flange alignment and surface condition
- Following manufacturer-recommended bolt tightening sequences
- Using calibrated torque wrenches to achieve proper compression
- Implementing controlled bolt-loading procedures for critical services
For spiral wound, corrugated gasket, and kammprofile gaskets with soft facings, avoid over-compression which can damage the facing material and compromise sealing performance.
Cost-Benefit Analysis
While initial gasket cost represents a small fraction of overall system expenses, the consequences of gasket failure can be substantial. Premium options like kammprofile gaskets typically cost more than basic compressed fiber gasket sheets but offer significantly longer service life and greater reliability in demanding applications.
When evaluating gasket options, consider total lifecycle costs including:
- Initial material costs
- Installation labor requirements
- Expected service life
- Maintenance frequency
- Potential downtime costs associated with failure
- Environmental and safety risks of leakage
For critical services where failure could result in significant consequences, the additional cost of premium gasket sheets is typically justified by enhanced reliability and reduced risk.
